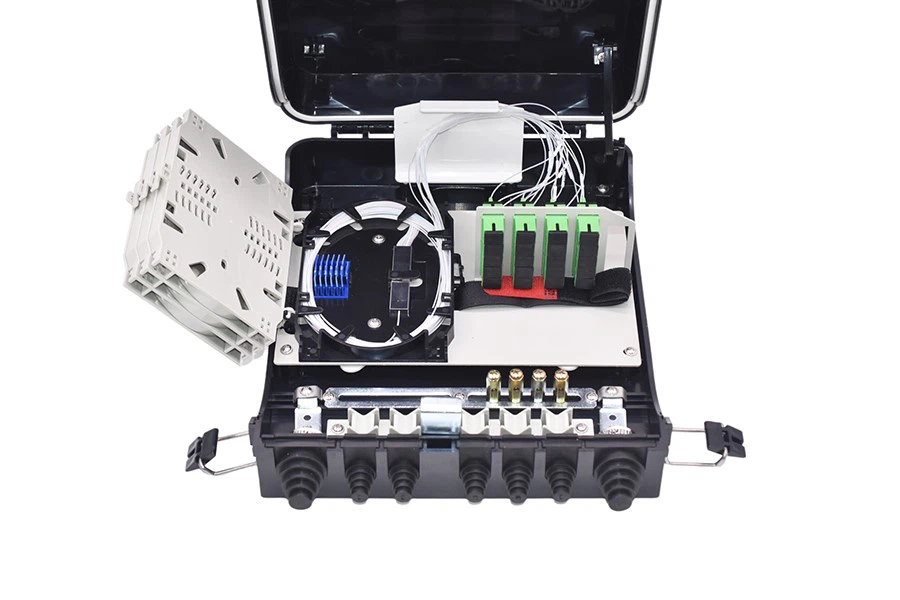

Outdoor Fiber Optic Distribution Box 24 Core CTO NAP In The FTTx Network System
description:
Spring Optical fiber access termination box(FDB) is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx network system. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection box.
Features:
- It is suitable for outdoor and made of high-quality plastic.
- Can accommodate ABS box type PLC splitter. 1x8 2pcs,1X16 1pcs.
- Rainfall-resistant, outdoor use
- Can load 24 pcs SC-type adapters
- Wall mounting and pole mounting application
- 2 pcs cable entry ports; the cable can be entered without cutting
- 24 pcs exit ports for FTTH drop cable
- There is one entrance that can go through the fast connector directly
Specifications:
| Item | Specifications |
| Size | 245*296*94.5mm |
| Material | PC+ABS |
| Protection Level | IP54 |
| Splitter | 1x8 2pcs,1X16 1pcs |
| Pigtail | 24pcs |
| Bending radius | ≥ 30mm |
| Entry ports cable dia.(max) | 2*φ25mm |
| Output ports and cable dia.(max) | 5*φ15mm |
| Box Color | Black |
| Operating Temperature | -25～+60℃ |
More pictures of inside splitters:
