Description

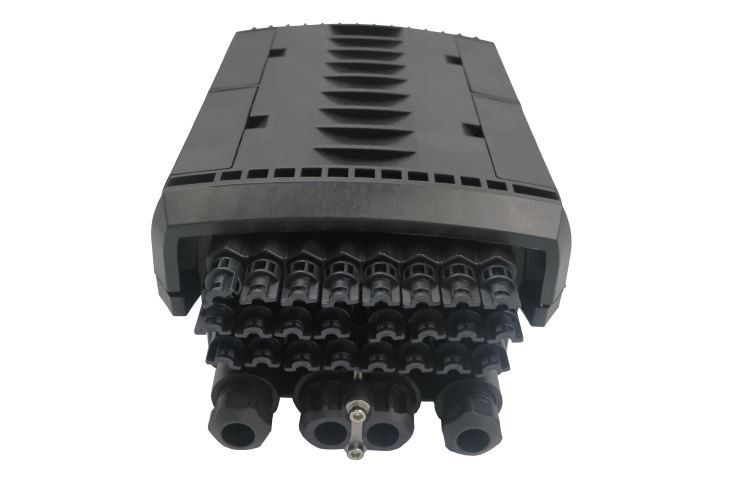

SP-GJSC-01 fiber access termination closure is able to hold up to 24 subscribers and 144 splicing points as closure. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features:
Ø Water-proof design with IP-68 Protection level.
Ø Integrated with flap-up splice cassette and adaptor holder.
Ø Impact test:IK10,Pull Force:100N,Full rugged design
Ø All stainless metal plate and anti-rusting bolts, nuts.
Ø Fiber bend radius control more than 40mm.
Ø Suitable for the fusion splice or mechanical splice.
Ø 2 pcs of 1*8 Splitter can be installed as an option.
Ø Mechanical sealing structure and mid-span cable entry.
Ø 24 ports cable entrance for drop cable .
Ø 24 adaptors for drop cable patching
Configuration:
Material | Size(mm) | Max Capacity | No. of adapter | Weight | Color | |
Strengthen Polymer Plastic | 385*245*155 | Splice 144 Fibers(6trays,24fiber/tray) | PLC Splitter 2pcs of 1x8 | 24pcs SC Simplex adapter | 5kg | Black |
Standard Accessories:
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, cable tube, weach, cover holder, rubber seal for cable entrance.
Optional Accessories: Pole ring
Applications：
Ø Wall mounting and pole mounting installation
Ø FTTH pre-installation and filed installation
Ø 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable
