ODWAC-22 FTTH Fiber Optic Drop Cable Wire Connection Clamps

ODWAC-22 FTTH Fiber Optic Drop Cable Wire Connection Clamps
Details:

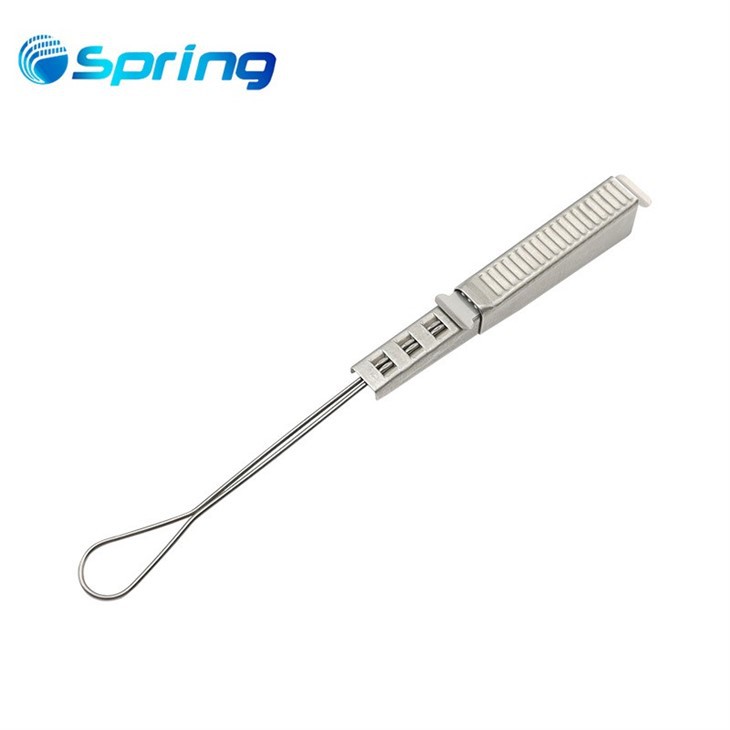

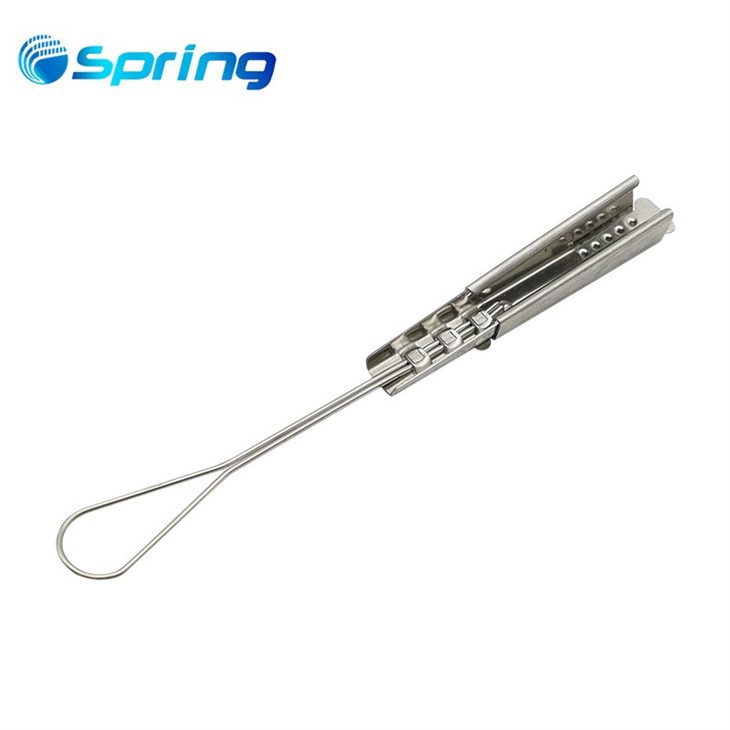

The fiber drop wire clamp ODWAC is composed of a body,a wedge and a shim. A solid wire bail is crimped to the wedge. All parts are made out of stainless steel.We offer this tension clamp with appropriate dead-end anchor FTTH ODWAC clamp, S-type, ACC and other FTTH clamps.All the assemblies passed the tensile tests, operation experience with temperatures ranging from -60 °C up to +60 °C test, temperature-cycling test.
Send Inquiry
Description
Send Inquiry



ODWAC-22 FTTH Fiber Optic Drop Cable Wire Connection Clamps



ODWAC-22





details:

  • Name: ODWAC-22 Drop Cable Clamp
  • Type: Tension clamp for FTTH drop cable
  • Components: Body, wedge, shim, and a solid wire bail crimped to the wedge.
  • Material: All parts are made of stainless steel.
  • Features: Designed to withstand tension, with components that have passed tensile tests.
  • Competitive price



Features:

  • Easy installation, tools free
  • High mechanical strength
  • Remove and don't hurt cable jacket
  • Stainless steel matereial corrosion resistant and durable
  • Applied with drive hook, pole bracket or other fittings
  • Excellent environmental stability
  • Competitive price







Technical Specification:

Model               Cable Diameter(mm) Break Load (KN)
ODWAC-22 2*6mm 1KN





Product Details:

ODWAC-22 picture



Application：



APPLICATION
