Spring Optical Communication is one of the largest and best fpv drone fiber optic cable – long-range, anti-jamming wired fpv solution manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized fpv drone fiber optic cable – long-range, anti-jamming wired fpv solution in stock with our factory. Also, free sample is also available if necessary.
Overview of FPV Drone Fiber Optic Cable
The FPV drone fiber optic cable provides a wired optical communication solution for drones, ground robots, and inspection platforms, specifically designed for use in complex terrains and high-interference environments. The cable enables stable, high-speed data transmission over distances from 3 km up to 30 km. The system is lightweight, robust, and ensures secure, interference-free communication, making it particularly suitable for both civilian and military applications.
The cable's high resilience and long-range capabilities provide reliable data transmission in mission-critical environments, where security and precision are paramount. Whether for industrial use, security monitoring, or tactical military operations, this fiber optic system offers secure, high-performance connectivity.
Key Features:
Works on any landform with flying distance of 3–30 km: Ensures flexibility in both urban and rugged military terrains.
Extremely lightweight and portable: Easy to deploy in mission-critical, time-sensitive military operations.
Very strong, drop-resistant construction: Built to withstand harsh military environments, including high-impact and extreme conditions.
Unique configuration for mission-critical applications: Ideal for secure, high-bandwidth military communication and surveillance.
Applications of FPV Drone Fiber Optic Cable
The FPV drone fiber optic cable is ideal for various high-security, industrial, and military applications, offering robust, interference-resistant communication in mission-critical operations:
Military Drone Surveillance and Reconnaissance: FPV drone fiber optic cable enables stable, long-range, and secure data transmission, supporting real-time video and telemetry data back to command centers during military surveillance missions. The system ensures secure communications in environments prone to electronic warfare or interference.
Military Field Communication: In tactical military operations, the cable offers reliable fiber-optic connectivity for real-time communications between unmanned aerial vehicles (UAVs) and ground forces, allowing for high-precision control and feedback. It is particularly useful in areas with heavy interference or electronic countermeasures.
Underwater and Submarine Operations: The system's stable, high-speed optical data transmission remains unaffected by underwater interference, making it ideal for military underwater robots and submarine communication during covert operations or reconnaissance missions.
Pipeline Crawling Robot Communication: In military and defense applications, this system supports high-speed optical data transmission in complex urban pipeline networks, providing real-time data transfer between robots and operators. This ensures safety, reduces maintenance risks, and enables enhanced situational awareness in military zones.
Remote Fiber Monitoring for Military Bases: The FPV drone fiber optic cable enables high-bandwidth optical transmission for stable, high-resolution video monitoring in military facilities and critical infrastructure. With its strong anti-interference capabilities, it is well-suited for securing military sites and ensuring operational continuity.
FPV Racing Drone for Military Training: Military forces use FPV drones equipped with fiber optic cables for training exercises, where real-time, stable communication is necessary for coordination and simulation of tactical operations. The cable ensures clear, uninterrupted communication over long distances (up to 30 km), even in high-interference environments.
FPV Drone Fiber Optic Cable Supplier

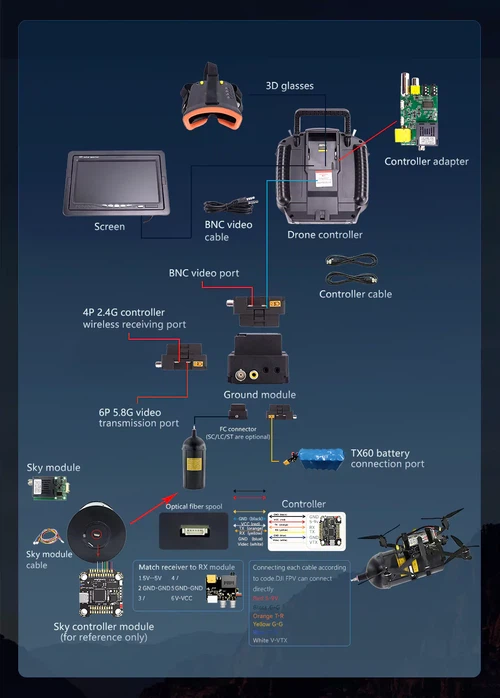

Fiber Optic Cable Drone Work Procedure Diagram
This FPV drone fiber optic system is designed for long-distance, secure, and interference-resistant communication in mission-critical environments. It is suitable for OEM integration, system deployment, and customized fiber length configurations from 3 km to 30 km.
Hot Tags: FPV drone fiber optic cable, fiber optic communication, drone communication, long-range FPV fiber, military fiber optic, tactical communication,FPV drone fiber optic cable Supplier
Ground Module – FPV Drone Fiber Optic Cable Technical Specifications
| Item | Specification |
|---|---|
| Power Supply | 3–6S Battery |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Dimensions | 123 × 56 × 31 mm |
| Weight | 186 ± 2 g |
| Fiber Port | FC |
| Fiber Type | Single-mode, Simplex (G.657A2) |
| Data Port | GH1.25 |
| Video Format | NTSC / PAL / SECAM |
| Data Direction | Bi-directional |
| Data Format | TTL / S.BUS |
| Data Rate | 0–1 Mbps |
| Wavelength | 1310 nm (9/125 μm) + 1550 nm |
| Transmission Distance | 0–30 km |
Sky Module – FPV Drone Fiber Optic Cable Transmission Module
The sky module transmits signals via optical fiber with high stability and high transmission rate. It supports large data throughput, is resistant to electromagnetic interference, anti-eavesdrop, and supports a maximum 30 km transmission distance. Ideal for drones requiring secure and long-range communication.

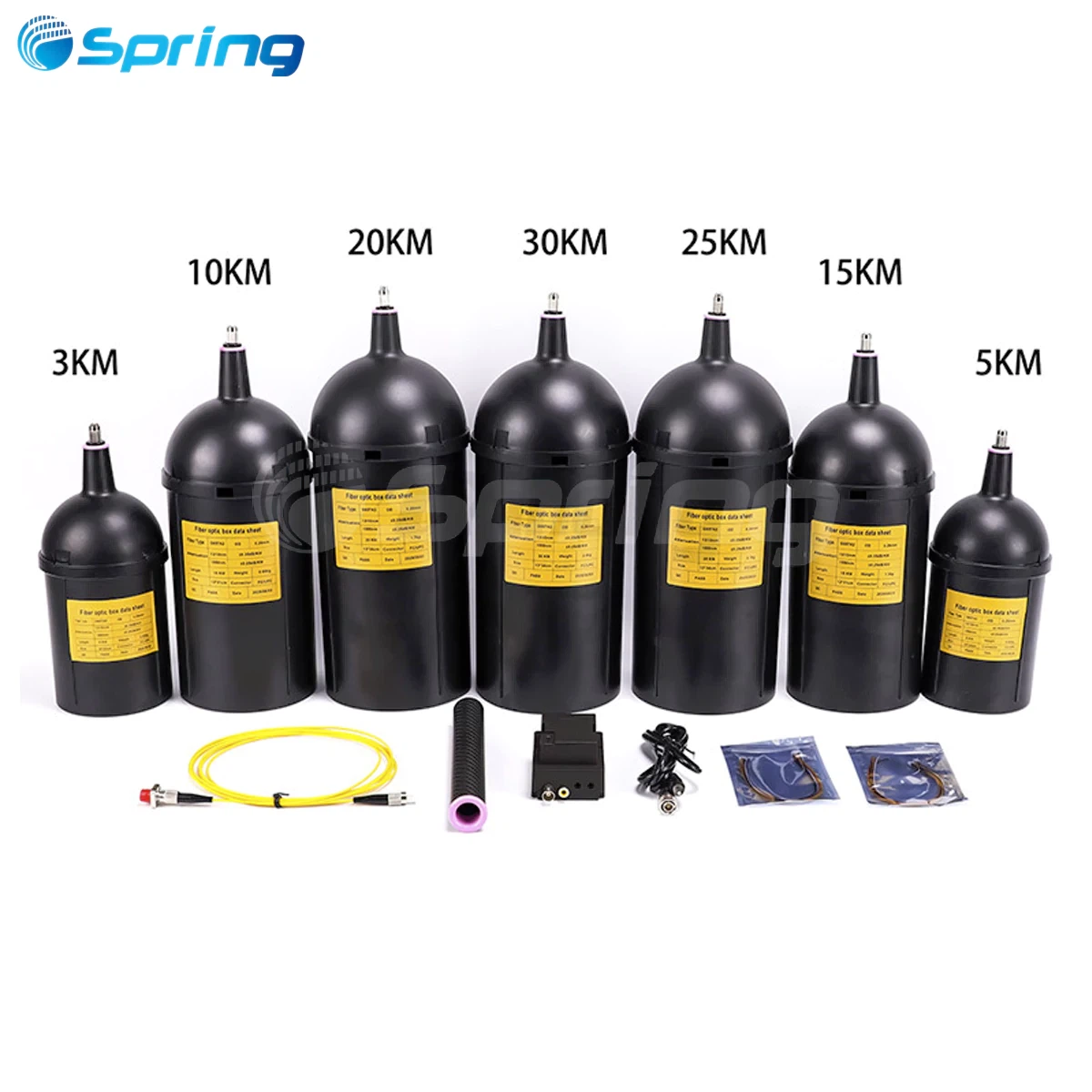

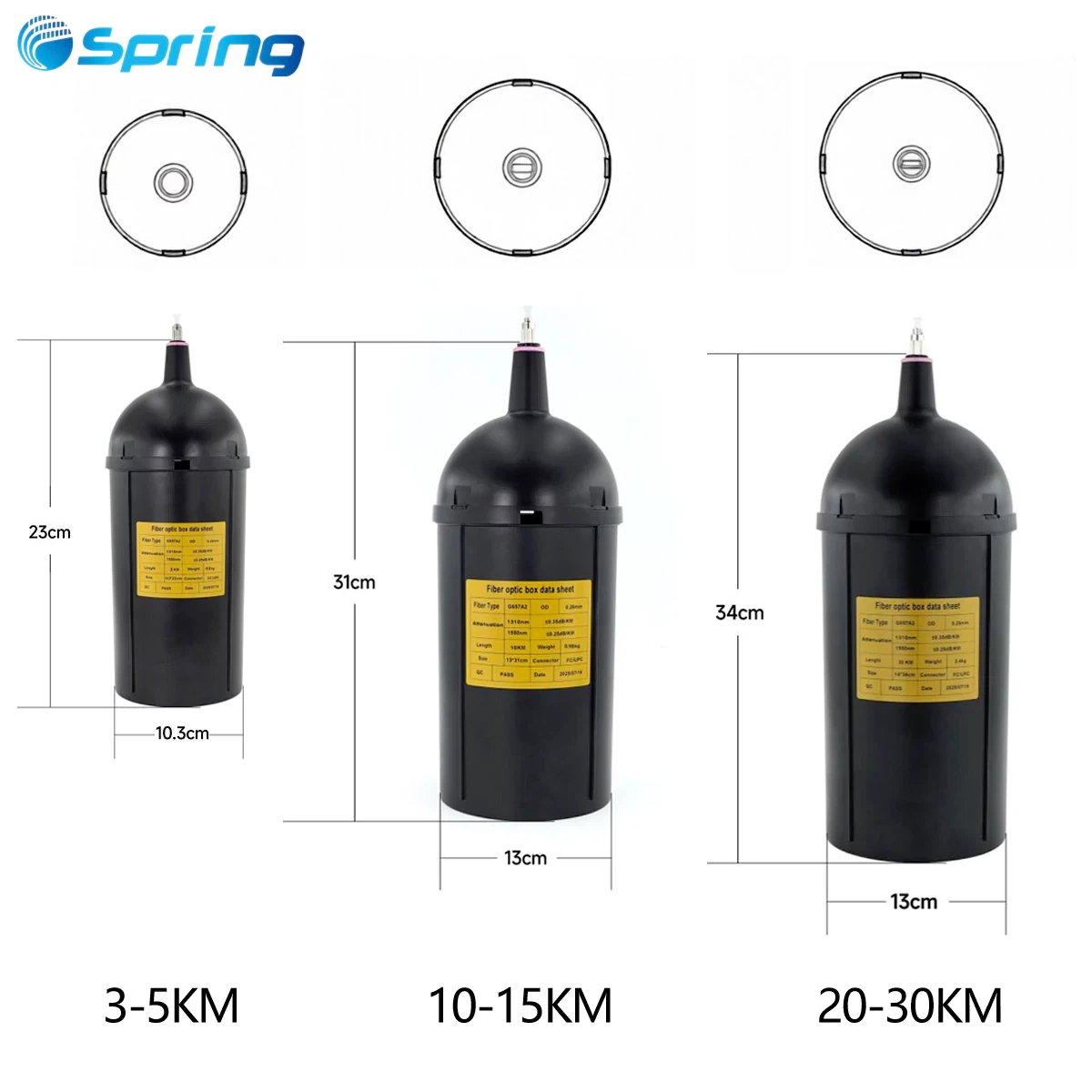

FPV Drone Fiber Optic Cable Fiber Length & Canister Weight
| Fiber Length | Net Weight | Size of Canister |
| 3 KM | 0.49 kg | 10.3 × 34 cm |
| 5 KM | 0.63 kg | 10.3 × 34 cm |
| 10 KM | 0.98 kg | 13 × 31 cm |
| 15 KM | 1.3 kg | 13 × 31 cm |
| 20 KM | 1.7 kg | 14 × 34 cm |
| 25 KM | 2.1 kg | 14 × 34 cm |
| 30 KM | 2.4 kg | 14 × 34 cm |
FPV Drone Fiber Optic Cable – Inner Box & Outer Carton Information
| Fiber Length | Size of Inner Box | Weight | Size of Outer Box | Weight | Qty/Box |
| 3 KM | 31 × 14.5 × 16 cm | 0.81 kg | 65 × 32 × 35 cm | 8 kg | 8 |
| 5 KM | 31 × 14.5 × 16 cm | 0.93 kg | 65 × 32 × 35 cm | 9 kg | 8 |
| 10 KM | 42 × 17.5 × 20 cm | 1.35 kg | 45 × 38 × 44 cm | 9.6 kg | 6 |
| 15 KM | 42 × 17.5 × 20 cm | 1.67 kg | 45 × 38 × 44 cm | 11.5 kg | 6 |
| 20 KM | 44.5 × 20 × 21 cm | 2.13 kg | 48 × 44 × 45 cm | 14.5 kg | 6 |
| 25 KM | 44.5 × 20 × 21 cm | 2.43 kg | 48 × 44 × 45 cm | 16.5 kg | 6 |
| 30 KM | 44.5 × 20 × 21 cm | 2.83 kg | 48 × 44 × 45 cm | 18.8 kg | 6 |
FPV Drone Fiber Optic Cable Spool – Detailed Models
3 KM Model of Drone Fiber Optic Cable
| Parameter | Specification |
| Model | FPV2.0-0.26-3KM |
| Fiber Length | 3000 + 60 M |
| Fiber Type | G657A2 |
| Jacket Material | / |
| Weight | 65 g/km |
| Outer Diameter | 0.26 mm ± 0.1 |
| Working Temperature | -40~+85 °C |
| Color of Tight Buffer | Natural (transparent) |
| Fiber Connector | FC/UPC (default) |
| Attenuation @1310 nm | ≤0.35 dB/km |
| Attenuation @1550 nm | ≤0.25 dB/km |
| Insertion Loss | ≤1.3 dB (3 KM with connector) / ≤1.0 dB (3 KM with connector) |
| Material of Canister | ABS / black |
| Dimension of Canister | φ10.3 × H23 cm |
| Net Weight (Box + Fiber Spool) | 490 g |
| Inner Box | 31 × 14.5 × 16 cm |
| Inner Box Weight | 810 g |
| Outer Carton | 65 × 32 × 35 cm (8 pcs) |
| Outer Carton Weight | 8 kg |
5 KM Model of Drone Fiber Optic Cable
| Parameter | Specification |
| Model | FPV2.0-0.26-5KM |
| Fiber Length | 5000 + 100 M |
| Weight | 65 g/km |
| Outer Diameter | 0.26 mm ± 0.1 |
| Insertion Loss | ≤2.3 dB / ≤1.8 dB |
| Net Weight (Box + Fiber Spool) | 630 g |
| Inner Box | 31 × 14.5 × 16 cm / 930 g |
| Outer Carton | 65 × 32 × 35 cm / 9 kg (8 pcs) |
10 KM Model of Drone Fiber Optic Cable
| Parameter | Specification |
| Model | FPV2.0-0.26-10KM |
| Fiber Length | 10000 + 200 M |
| Outer Diameter | 0.26 mm ± 0.01 |
| Insertion Loss | ≤4.0 dB / ≤3.0 dB |
| Net Weight (Box + Fiber Spool) | 980 g |
| Inner Box | 42 × 17.5 × 20 cm / 1350 g |
| Outer Carton | 45 × 38 × 44 cm / 9.6 kg (6 pcs) |
15 KM Model of Drone Fiber Optic Cable
| Parameter | Specification |
| Model | FPV2.0-0.26-15KM |
| Fiber Length | 15000 + 300 M |
| Insertion Loss | ≤5.8 dB / ≤4.3 dB |
| Net Weight (Box + Fiber Spool) | 1300 g |
| Inner Box | 42 × 17.5 × 20 cm / 1670 g |
| Outer Carton | 45 × 38 × 44 cm / 11.5 kg (6 pcs) |
20 KM Model of Drone Fiber Optic Cable
| Parameter | Specification |
| Model | FPV2.0-0.26-20KM |
| Fiber Length | 20000 + 400 M |
| Insertion Loss | ≤7.2 dB / ≤5.2 dB |
| Net Weight (Box + Fiber Spool) | 1700 g |
| Inner Box | 44.5 × 20 × 21 cm / 2130 g |
| Outer Carton | 48 × 44 × 45 cm / 14.5 kg (6 pcs) |
30 KM Model of Drone Fiber Optic Cable
| Parameter | Specification |
| Model | FPV2.0-0.26-30KM |
| Fiber Length | 30000 + 600 M |
| Insertion Loss | ≤10.7 dB / ≤7.7 dB |
| Net Weight (Box + Fiber Spool) | 2400 g |
| Inner Box | 44.5 × 20 × 21 cm / 2830 g |
| Outer Carton | 48 × 44 × 45 cm / 18.8 kg (6 pcs) |
